Additional Settings Page

The Additional Settings Page allows you to configure additional settings such as a Proxy server for outbound connections.

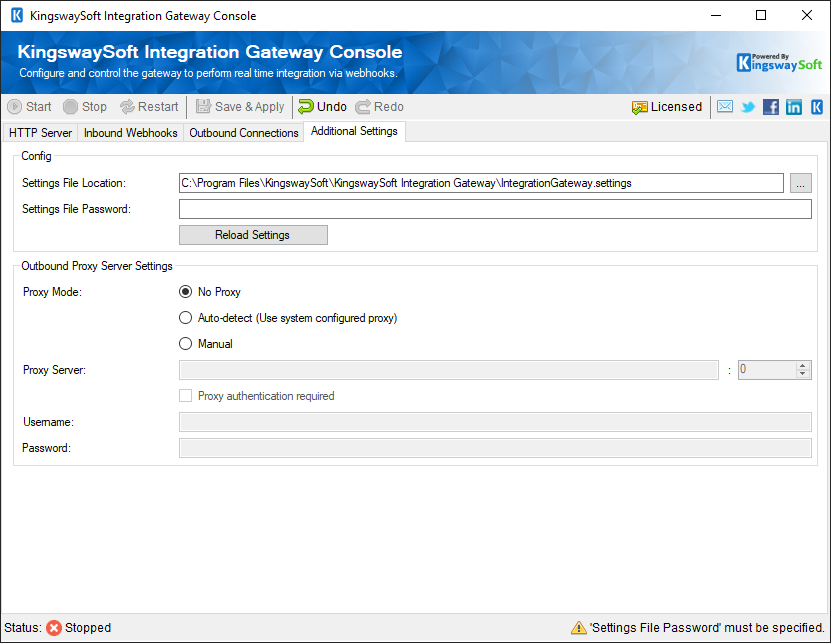

KingswaySoft Integration Gateway Console - Additional Settings

Config
Settings File Location
This option allows you to specify the location of the settings file which the integration gateway configurations are saved at.
Settings File Password
This option allows you to specify the password of the settings file.
Reload Settings
Clicking this button will reload the configurations of the integration gateway based on the specified settings file.
Outbound Proxy Server Settings
Proxy Mode

Proxy Mode option allows you to specify how you want to configure the proxy server setting. There are three options available.

  • No Proxy
  • Auto-detect (Using system configured proxy)
  • Manual
Proxy Server
This option allows you to specify the Proxy Server which the outbound connections will go through.
Port
The Port option allows you to specify the port number of the proxy server for the connection.
Username
The Username option allows you to specify the proxy user account.
Password
The Password option allows you to specify the proxy user’s password.
