Windows Command Connection

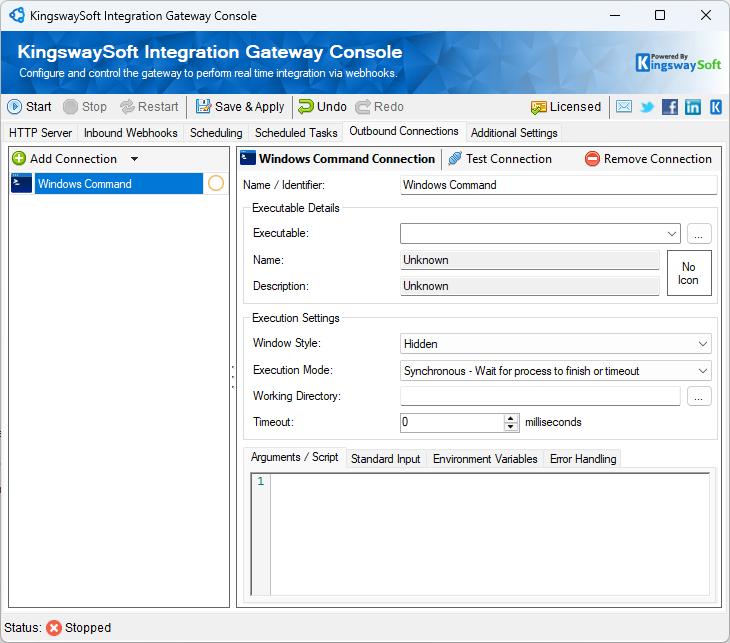

The Windows Command Connection page allows you to configure the connection within Integration Gateway to send requests to it.
- Name / Identifier
-
Specifies a unique name or identifier for the Windows Command.
- Executable Details
-
- Executable
-
Specifies the path to the executable file or script to be run.
- Name
-
Defines a name for the command. By default, it is set to 'Unknown'.
- Description
-
Provides a description and/or additional details about the command. By default, it is set to 'Unknown'..
- Execution Settings
-
- Windows Style
-
Specifies how the command window should appear during execution.
There are 4 options available:
- Hidden – Runs the command without displaying a window.
- Maximized – Opens the command window in full-screen mode.
- Minimized – Runs the command in a minimized window.
- Normal – Runs the command in a standard window.
- Execution Mode
-
The Execution Mode can be chosen between the below two.
- Synchronous - Wait for process to finish or timeout
- Asynchronous - Leave process running
- Working Directory
-
Defines the directory from which the command will be executed, ensuring file paths and dependencies are correctly resolved.
- Timeout
-
The Timeout (secs) option allows you to specify a timeout value in miliseconds for the connection. The default value is 0 seconds.
