Google Ads Connectivity

Documentation for Google Ads drivers found within JDBC Driver Pack

Google Ads

Building the JDBC URL

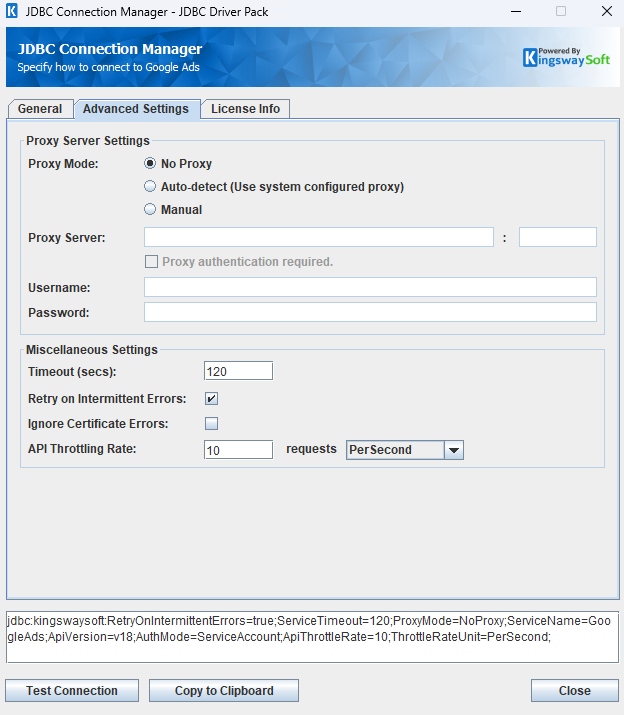

After installing the license, access the connection management page by executing the command "java -jar kingswaysoft.jdbc.jar". Enter the necessary details, and the program will automatically generate the JDBC connection URL. Users can click Test Connection to test the generated URL and Copy to Clipboard to copy the connection string for use within the application where the JDBC driver is being used.

Note: If a license is not installed, you can still use the connection manager to generate a JDBC URL, but the 'Test Connection' feature will be disabled.

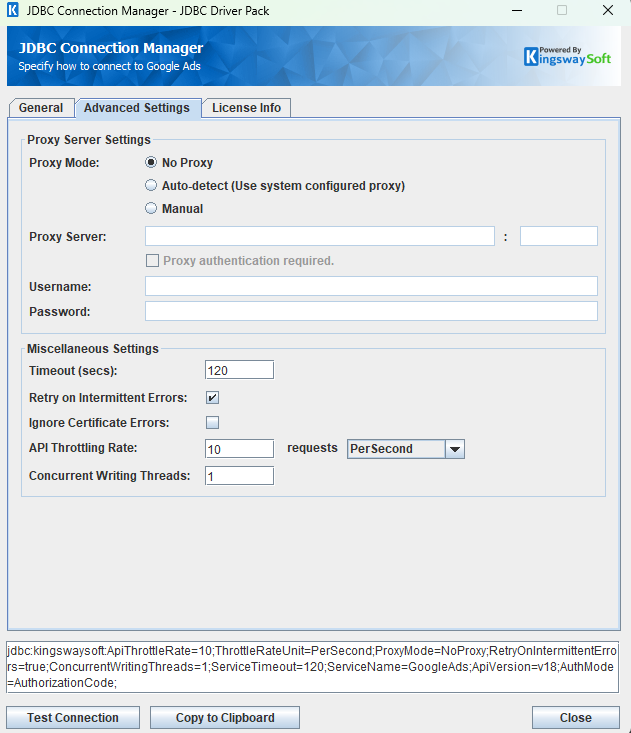

connectionmanage

There are two ways to connect to Google Ads:

OAuth Authorization Code

A saved token file and token password can be used to establish a connection. If you wish to generate a new token file, click Generate Token File to go through the token generation process, save the token file locally, and use the set token password to connect.

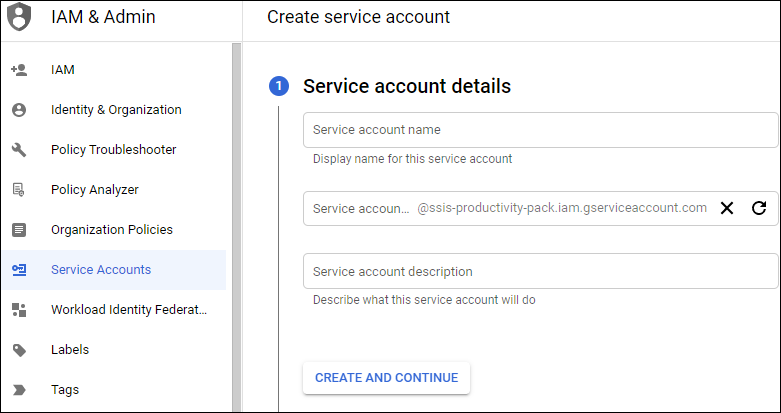

Service Account

JSON

A Google JSON token file can be used to establish a connection.

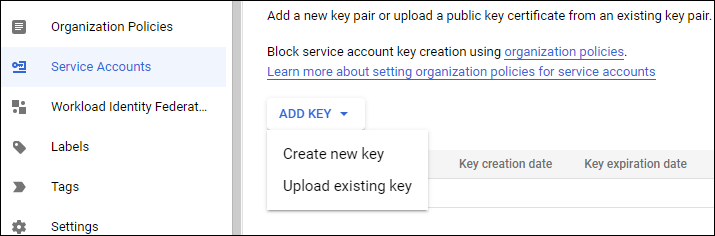

P12

Service account, developer token and a Google certificate can be used to establish a connection.

Using the JDBC Driver

Explore detailed examples in this section that demonstrate the application of JDBC classes such as Connection, Statement, and ResultSet to effectively manage interactions with Google Ads data. This section covers the use of regular statements and prepared statements for executing complex or frequently executed queries.

Executing Statements

Once you've connected from your code (see Connecting with DriverManager and Connecting with DataSource), you can execute SQL statements using the Statement class. Refer to the Executing Prepared Statements section for information on how to execute parameterized statements.

SELECT

Use the Statement class's generic execute method or the executeQuery method to execute SQL statements that return data. To retrieve the results of a query, you would then call the getResultSet method of the Statement.

String sql = "SELECT * FROM ad WHERE customer.status = 'ENABLED'";
try {
	ResultSet resultSet = statement.executeQuery(sql);
	LOGGER.info(resultSet.toString());
} catch (SQLException e) {
	LOGGER.severe(e.toString());
}

INSERT

Use either the generic execute method or the executeUpdate method of the Statement class to execute an INSERT operation.

The results of SQL queries are saved in a ResultSet. You can retrieve the ResultSet after execution to view the inserted data's ID, exceptions raised during execution, and details of the affected data.

String sql = "INSERT INTO label (name) VALUES ('test title')";
try {
	statement.executeUpdate(sql);
	LOGGER.info(statement.getResultSet().toString());
} catch (SQLException e) {
	LOGGER.severe(e.toString());
}

id,errorcode,errormessage,processdata
customers/7165949131/labels/22014497033,null,null,{"create":{"name":"test title"}}

UPDATE

Use either the generic execute method or the executeUpdate method of the Statement class to execute an UPDATE operation.

The results of SQL queries are saved in a ResultSet. You can retrieve the ResultSet after execution to view the updated data's ID, exceptions raised during execution, and details of the affected data.

String sql = "UPDATE label SET name = 'updatedName1.0' WHERE resource_name = 'customers/7165949131/labels/21996215203'";
try {
	statement.executeUpdate(sql);
	LOGGER.info(statement.getResultSet().toString());
} catch (SQLException e) {
	LOGGER.severe(e.toString());
}

id,errorcode,errormessage,processdata
customers/7165949131/labels/21996215203,null,null,{"updateMask":"name,resource_name","update":{"name":"updatedName1.0","resource_name":"customers/7165949131/labels/21996215203"}}

DELETE

Use either the generic execute method or the executeUpdate method of the Statement class to execute a DELETE operation.

The results of SQL queries are saved in a ResultSet. You can retrieve the ResultSet after execution to view the deleted data's ID, exceptions raised during execution, and details of the affected data.

String sql = "DELETE FROM ad_group WHERE resource_name IN ('customers/7165949131/adGroups/175764037387','customers/7165949131/adGroups/173291471512')";
try {
	statement.executeUpdate(sql);
	LOGGER.info(statement.getResultSet().toString());
} catch (SQLException e) {
	LOGGER.severe(e.toString());
}

id,errorcode,errormessage,processdata
customers/7165949131/adGroups/175764037387,null,null,{"remove":"customers/7165949131/adGroups/175764037387"}
customers/7165949131/adGroups/173291471512,null,null,{"remove":"customers/7165949131/adGroups/173291471512"}

Executing Prepared Statements

Using a PreparedStatement can improve performance when you need to execute a SQL statement multiple times with different parameters. Unlike a Statement object, a PreparedStatement object is provided with a SQL statement when it is created, which can then be executed with different values each time. This special type of statement is derived from the more general class, Statement.

Below are the steps outlining how to execute a prepared statement:

  1. Create a PreparedStatement: Use the prepareStatement method of the Connection class to instantiate a PreparedStatement. Refer to Connecting with DriverManager or Connecting with DataSource for information related to establishing connections.
  2. Set Parameters: Declare parameters by calling the corresponding setter method of the PreparedStatement. Note: The parameter indices start at 1.
  3. Execute the Statement: Use the generic execute or executeUpdate method of the PreparedStatement.
  4. Retrieve Results: Call the getResultSet method of the Prepared Statement to obtain the query results, which will be returned as a ResultSet.
  5. Iterate Over the Result Set: Use the next method of the ResultSet to iterate through the results. To obtain column information, utilize the ResultSetMetaData class. Instantiate a ResultSetMetaData object by calling the getMetaData method of the ResultSet.

SELECT

Use the Statement class's generic execute method or the executeQuery method to execute SQL statements that return data.

The results of SQL queries are saved in a ResultSet. You can retrieve the ResultSet after execution to view the retrieved data.

String sqlIn = "SELECT * FROM label WHERE id = ?";
try {
	PreparedStatement ps = connection.prepareStatement(sqlIn);
	ps.setString(1, "customers/7165949131/adGroups/175764037387");

	boolean ret = ps.execute(sqlIn);
	if (ret) {
		ResultSet rs = ps.getResultSet();
		LOGGER.info(rs.toString());
	}
} catch (SQLException e) {
	LOGGER.severe(e.toString());
}

INSERT

Use either the generic execute method or the executeUpdate method of the Statement class to execute an INSERT operation.

The results of SQL queries are saved in a ResultSet. Users can retrieve the ResultSet after execution to view the ID of inserted data, exceptions raised during execution, and the data affected by the insertion.

String sql = "INSERT INTO label (name) VALUES (?), (?), (?), (?)";
try {
	Connection connection = buildRestConnectionFromDriverManager();
	PreparedStatement ps = connection.prepareStatement(sql);
	ps.setString(1, "Insert Test1");
	ps.setString(2, "Insert Test2");
	ps.setString(3, "Insert Test3");
	ps.setString(4, "Insert Test4");
	ps.executeUpdate();

	LOGGER.info(ps.getResultSet().toString());
} catch (SQLException e) {
	LOGGER.severe(e.toString());
}

id,errorcode,errormessage,processdata
customers/7165949131/labels/21996215392,null,null,{"create":{"name":"Insert Test1"}}
customers/7165949131/labels/21996215395,null,null,{"create":{"name":"Insert Test2"}}
customers/7165949131/labels/21996215536,null,null,{"create":{"name":"Insert Test3"}}
customers/7165949131/labels/21996215539,null,null,{"create":{"name":"Insert Test4"}}

UPDATE

Use either the generic execute method or the executeUpdate method of the Statement class to execute an UPDATE operation.

The results of SQL queries are saved in a ResultSet. Users can retrieve the ResultSet after execution to view the ID of updated data, exceptions raised during execution, and the data affected by the update.

String sql = "UPDATE label SET text_label.description = ? WHERE resource_name IN (?)";
try {
	Connection connection = buildRestConnectionFromDriverManager();
	PreparedStatement ps = connection.prepareStatement(sql);
	ps.setString(1, "override update");
	ps.setString(2, "customers/7165949131/labels/21996215392");
	ps.executeUpdate();

	LOGGER.info(ps.getResultSet().toString());
} catch (SQLException e) {
	LOGGER.severe(e.toString());
}

id,errorcode,errormessage,processdata
customers/7165949131/labels/21996215392,null,null,{"updateMask":"text_label.description,resource_name","update":{"text_label":{"description":"override update"},"resource_name":"customers/7165949131/labels/21996215392"}}

DELETE

Use either the generic execute method or the executeUpdate method of the Statement class to execute a DELETE operation.

The results of SQL queries are saved in a ResultSet. You can retrieve the ResultSet after execution to view the deleted data's ID, exceptions raised during execution, and details of the affected data.

String deleteSql = "DELETE FROM label WHERE resource_name = ?";
try {
	Connection connection = buildRestConnectionFromDriverManager();
	PreparedStatement ps = connection.prepareStatement(deleteSql);
	ps.setString(1, "customers/7165949131/labels/21996215392");
	ps.executeUpdate();
	LOGGER.info(ps.getResultSet().toString());
} catch (SQLException e) {
	e.printStackTrace();
}

id,errorcode,errormessage,processdata
customers/7165949131/labels/21996215392,null,null,{"remove":"customers/7165949131/labels/21996215392"}

Metadata Discovery

This section provides examples on how to retrieve table and column metadata using the getTables and getColumns methods from the DatabaseMetaData interface. These are essential for discovering database structures.

Tables

The getTables method from the DatabaseMetaData interface can be used to retrieve a list of tables.

try {
    Connection connection = buildRestConnectionFromDriverManager();
    ResultSet rs = connection.getMetaData().getTables(null, null, null, null);
    LOGGER.info("\r\n" + rs.toString());
} catch (SQLException e) {
    LOGGER.severe(e.getMessage());
}

TABLE_CAT,TABLE_SCHEM,TABLE_NAME,TABLE_TYPE,REMARKS
null,null,accessible_bidding_strategy,Table,
null,null,account_budget,Table,
null,null,account_budget_proposal,Table,
null,null,account_link,Table,
null,null,ad,Table,
null,null,ad_group,Table,
null,null,ad_group_ad,Table,
null,null,ad_group_ad_asset_combination_view,Table,
null,null,ad_group_ad_asset_view,Table,
null,null,ad_group_ad_label,Table,
null,null,ad_group_asset,Table,
null,null,ad_group_asset_set,Table,
......

The getTables method returns the following metadata columns:

Column Name Data Type Description
TABLE_CAT String The catalog that contains the table.
TABLE_SCHEM String The schema of the table.
TABLE_NAME String The name of the table name.
TABLE_TYPE String The type of the table (e.g., TABLE or VIEW).
REMARKS String An optional description of the table.

Columns

Use the getColumns method of the DatabaseMetaData interface to retrieve detailed information about the columns in the database. To narrow your search to a specific table, specify the table name as a parameter.

try {
    Connection connection = buildRestConnectionFromDriverManager();
    ResultSet rs = connection.getMetaData().getColumns(null, null, "campaign", null);
    LOGGER.info(rs.toString());
} catch (SQLException e) {
    e.printStackTrace();
}

TABLE_CAT,TABLE_SCHEM,TABLE_NAME,COLUMN_NAME,DATA_TYPE,TYPE_NAME,COLUMN_SIZE,BUFFER_LENGTH,DECIMAL_DIGITS,NUM_PREC_RADIX,NULLABLE,REMARKS,COLUMN_DEF,SQL_DATA_TYPE,SQL_DATETIME_SUB,CHAR_OCTET_LENGTH,ORDINAL_POSITION,IS_NULLABLE,IS_AUTOINCREMENT,IS_GENERATEDCOLUMN,DTS_TYPE
null,null,campaign,accessible_bidding_strategy.id,-5,java.lang.Long,0,null,0,0,null,null,null,-5,null,null,null,null,null,null,DT_I8
null,null,campaign,accessible_bidding_strategy.maximize_conversion_value.target_roas,8,java.lang.Double,0,null,0,0,null,null,null,8,null,null,null,null,null,null,DT_DOUBLE
null,null,campaign,accessible_bidding_strategy.maximize_conversions.target_cpa_micros,-5,java.lang.Long,0,null,0,0,null,null,null,-5,null,null,null,null,null,null,DT_I8
null,null,campaign,accessible_bidding_strategy.name,12,java.lang.String,255,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,campaign,accessible_bidding_strategy.owner_customer_id,-5,java.lang.Long,0,null,0,0,null,null,null,-5,null,null,null,null,null,null,DT_I8
null,null,campaign,accessible_bidding_strategy.owner_descriptive_name,12,java.lang.String,255,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,campaign,accessible_bidding_strategy.resource_name,12,java.lang.String,255,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,campaign,accessible_bidding_strategy.target_cpa.target_cpa_micros,-5,java.lang.Long,0,null,0,0,null,null,null,-5,null,null,null,null,null,null,DT_I8
null,null,campaign,accessible_bidding_strategy.target_impression_share.cpc_bid_ceiling_micros,-5,java.lang.Long,0,null,0,0,null,null,null,-5,null,null,null,null,null,null,DT_I8
null,null,campaign,accessible_bidding_strategy.target_impression_share.location,12,java.lang.String,255,null,0,0,null,null,null,12,null,null,null,null,null,null,DT_WSTR
null,null,campaign,accessible_bidding_strategy.target_impression_share.location_fraction_micros,-5,java.lang.Long,0,null,0,0,null,null,null,-5,null,null,null,null,null,null,DT_I8
null,null,campaign,accessible_bidding_strategy.target_roas.target_roas,8,java.lang.Double,0,null,0,0,null,null,null,8,null,null,null,null,null,null,DT_DOUBLE
null,null,campaign,accessible_bidding_strategy.target_spend.cpc_bid_ceiling_micros,-5,java.lang.Long,0,null,0,0,null,null,null,-5,null,null,null,null,null,null,DT_I8

The getColumns method returns the following columns:

Column Name Data Type Description
TABLE_CAT String The database name.
TABLE_SCHEM String The table schema.
TABLE_NAME String The table name.
COLUMN_NAME String The column name.
DATA_TYPE Integer The data type represented by a constant value from java.sql.Types.
TYPE_NAME String The data type name used by the driver.
COLUMN_SIZE Integer The length in characters of the column or the numeric precision.
BUFFER_LENGTH Integer The buffer length.
DECIMAL_DIGITS Integer The column scale or number of digits to the right of the decimal point.
NUM_PREC_RADIX Integer The radix, or base.
NULLABLE Integer Whether the column can contain null as defined by the following JDBC DatabaseMetaData constants: columnNoNulls (0) or columnNullable (1).
REMARKS String The comment or note associated with the object.
COLUMN_DEF String The default value for the column.
SQL_DATA_TYPE Integer Reserved by the specification.
SQL_DATETIME_SUB Integer Reserved by the specification.
CHAR_OCTET_LENGTH Integer The maximum length of binary and character-based columns.
ORDINAL_POSITION Integer The position of the column in the table, starting at 1.
IS_NULLABLE String Whether a null value is allowed: YES or NO.
IS_AUTOINCREMENT String Whether the column value is assigned by Google Ads in fixed increments.
IS_GENERATEDCOLUMN String Whether the column is generated: YES or NO.
DTS_TYPE String Object DTS attribute type.

Primary Keys

The getPrimaryKeys method in the DatabaseMetaData interface is used to retrieve metadata about primary keys for a given table in Google Ads.

try {
    Connection connection = buildRestConnectionFromDriverManager();
    ResultSet resultSet = connection.getMetaData().getPrimaryKeys(null, null, "ad");
    LOGGER.info("\r\n" + resultSet.toString());
    Assertions.assertNotNull(resultSet);
} catch (SQLException e) {
    LOGGER.severe(e.getMessage());
}

TABLE_NAME,PRIMARY_COLUMN_NAME
ad,id

The getPrimaryKeys method returns the following columns:

Column Name Data Type Description
TABLE_NAME String The name of the table that contains the primary key.
PRIMARY_COLUMN_NAME String The name of the column that serves as the primary key for the table.

Connection Settings

Connection Setting Type Default Value Description
ApiThrottleRate Integer 0 The maximum number of API requests a client can make to the server within a specific time period, defined in requests per second.
ApiVersion String "v18" ApiVersion specifies the the version number of the Google Ads API being used.
AuthMode String "" AuthenticationType specifies the method used to authenticate when connecting to Google Ads API.
BulkPollingInterval Integer 5 How often the component checks the job status until the job status is COMPLETE.
CacheExpirationTime Integer 30 Defines the expiration time for cache. A value of 0 disables caching.
ConnectionTimeout Integer 30 ConnectionTimeout is the maximum amount of time the program will wait to set up a connection to the Google Ads API.
CustomerId String "" The Customer ID is a unique 10-digit identifier assigned to each Google Ads account.
CustomerAccountId String "" The Customer Account ID typically refers to the same 10-digit identifier as the Customer ID but is used in contexts where the account's role in a hierarchy or relationship.
DeveloperToken String "" The Developer Token required for generating the OAuth token.
IgnoreCertificateErrors Boolean false Specifies whether to verify the certificate when connecting to Google Ads. If certificate verification is not required, you can set this value to 'true'.
IgnoreError Boolean false Determines if the program continues executing SQL statements after encountering an error.
KeyFilePath String "" The KeyFilePath specifies the Google API Login JSON file path.
LogFileSize String "10485760" A string specifying the maximum size in bytes for a log file.
LogLevel String "INFO" The logging level for the JDBC driver.
LogPath String "./jdbcLogs" The directory where log files are stored.
OemKey String "" The OEM License key.
PathToTokenFile String "" The TokenPath specifies the file path where the token for connecting to Google Ads is located.
PathToJsonPrivateKeyFile String "" The JsonKeyPath specifies the file path where the JSON key for connecting to Google Ads is located.
ProxyMode String NoProxy This setting configures the proxy. Allowed values are "NoProxy", "AutoDetect" and "Manual".
ProxyPassword String "" The password to be used to authenticate to the proxy.
ProxyServer String "" The host of the proxy server.
ProxyServerPort Integer 0 The port of the proxy server.
ProxyUsername String "" The username to be used to authenticate to the proxy.
ReadBatchSize Integer 100 ReadBatchSize is used to set how many records can be read from Google Ads in a single call.
ResultPath String "" The path where the execution result files are saved.
RetryOnIntermittentErrors Boolean true The RetryOnIntermittentErrors parameter indicates whether to retry the connection when it might occasionally fail due to temporary issues.
SaveResult Boolean false The SaveResult parameter indicates whether to save the execution results to a file.
ServiceAccount String "" The ServiceAccount refers to the account used for accessing Google APIs.
ServiceName String "" The ServiceName refers to the name of the service API selected by the user.
ServiceTimeout Integer 120 The ServiceTimeout is the timeout to receive the full response from Google Ads API.
TokenPassword String "" The password used to read the token file.
TotalThreads Integer 0 The number of threads for executing operations in parallel. A value of 0 will disable multi threading.
WriteBatchSize Integer 200 WriteBatchSize is used to set how many records can be written to Google Ads in a single call.
