Help Manual - Premium Message Queue Task

Documentation on SSIS Premium Message Queue Task component

Using the Premium Message Queue Task Component

The Premium Message Queue Task component is used to send or receive messages to or from message queues. There are two pages to configure:

  • General
  • Error Handling

General Page

SSIS Premium Message Queue Task Component

Connection Manager

The task requires a connection manager. You can choose from the ones available below:

  • ActiveMQ (since v21.2)
  • Amazon SQS
  • AMQP
  • Azure Queue Storage (since v22.1)
  • Azure Service Bus
  • IBM MQ
  • Kafka (since v22.1)
  • MSMQ
  • MQTT (since v23.3)
  • RabbitMQ
Actions

The available actions are the same for all connection managers, except for the Azure Queue Storage Manager, which is shown further down.

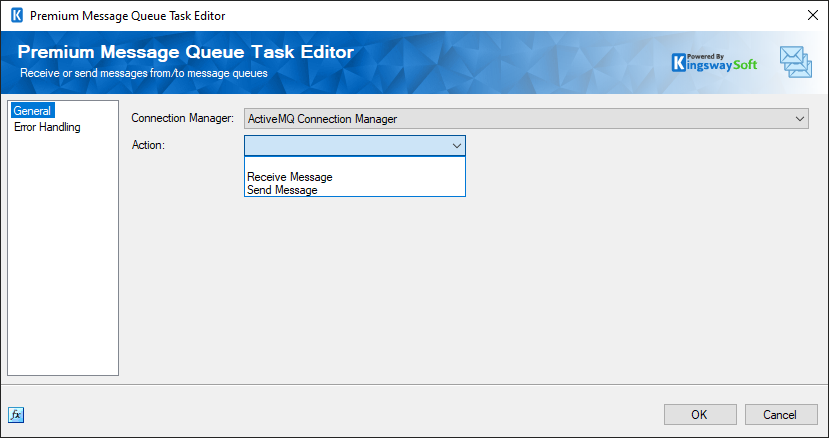

SSIS Premium Message Queue Task Editor - ActiveMQ

Receive Message

Choose this mode for receiving messages from the queue.

Send Message

Choose this mode to send messages to the queue.

Azure Queue Storage Actions

These actions (except Send Message) are available only for the Azure Queue Storage Connection Manager.

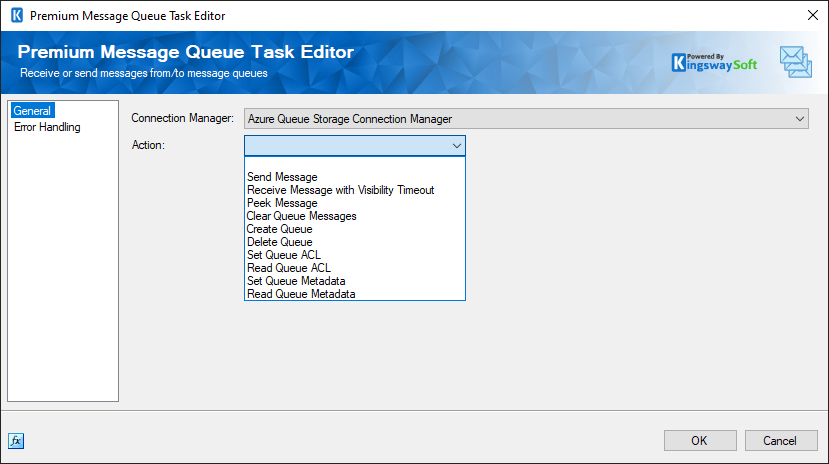

SSIS Premium Message Queue Task Editor - Azure Queue Storage

Send Message

Choose this mode to send messages to the queue.

Receive Message with Visibility Timeout

The visibility timeout setting specifies the new visibility timeout value, in seconds.

Peek Message

Messages will be received from the queue without deleting them or modifying the queue in any way.

Clear Queue Message

Clear messages from the queue.

Create Message

This option allows you to create a message to be sent to the queue.

Delete Message

Messages will be deleted from the queue.

Set Queue ACL

This option allows you to set the Access Control List for the queue.

Read Queue ACL

This option allows you to read the Access Control List for the queue

Set Queue Metadata

This option allows you to set queue metadata.

Read Queue Metadata

This option allows you to read queue metadata.

Receive mode options (Available for Receive Message only)

You can choose between the actions. There are two different modes for available for receiving messages:

  • Peek: Messages will be received from the queue without deleting them or modifying the queue in any way.
  • Receive and Delete: Messages will be retrieved and deleted from the queue.
Exchange (Only available to RabbitMQ connection)

The name of the exchange to receive messages from.

Queue

The name of the queue to receive messages from.

Decode from Base64 (Only available to Azure Queue Storage connection)

The Decode from Base64 option can be used to decode messages from the Base64 format string.

Encoding

Choose the encoding type from the list.

Visibility Timeout (sec) (Only available to Azure Queue Storage connection)

Choose the visibility timeout in seconds.

Output (Only available to Azure Queue Storage connection)

Choose the output label as file or variable:

  • Variable - Choose from the available variables
  • File - Choose using the file browser
ACLs (Only available to Azure Queue Storage connection)

This option has the following fields to give permissions:

  • ID - The ID for the ACL
  • Permission - The permission to be set for the ACL
  • Start - Start date for the permission
  • Expiry - Expiry date for the permission
Metadata (Only available to Azure Queue Storage connection)

This option has the following fields to for metadata:

  • Name - Name of the Queue Metadata
  • Value - Value to be assigned for the Queue Metadata
Message Label

Choose the message label as file or variable or none:

  • None
  • Variable - Choose from the available variables
  • File - Choose using the file browser
Message Body

Choose the message body as file or variable, or none:

  • None
  • Variable - Choose from the available variables
  • File - Choose using the file browser
Listener Mode (Only available under Receive Message mode)

There are three listener modes available:

  • Fixed Time Mode: Allows the component to exit the listener mode after a specified period if no message is received in the queue.
  • Wait Until Mode: Allows the component to exit the listener mode until a specified date and time if no message is received in the queue.
  • Wait Until Variable Mode: Allows the component to exit the listener mode until a date and time specified in a variable if no message is received in the queue.
  • Until Service is Stopped: Allows the component to listen till a message occurs.
Expression fx Icon

Click the blue fx icon to launch SSIS Expression Editor to enable dynamic updates of the property at run time.

Advanced Page

The "Advanced" page is available for the Send Message mode, and in some cases, for both Send and Receive Message modes, depending on the chosen connection manager. Below, you will find the advanced properties available for the connection managers.

ActiveMQ and AMQP Connection Managers

The "Advanced" page is available in the ActiveMQ and AMQP connection managers for both Send and Receive message modes.

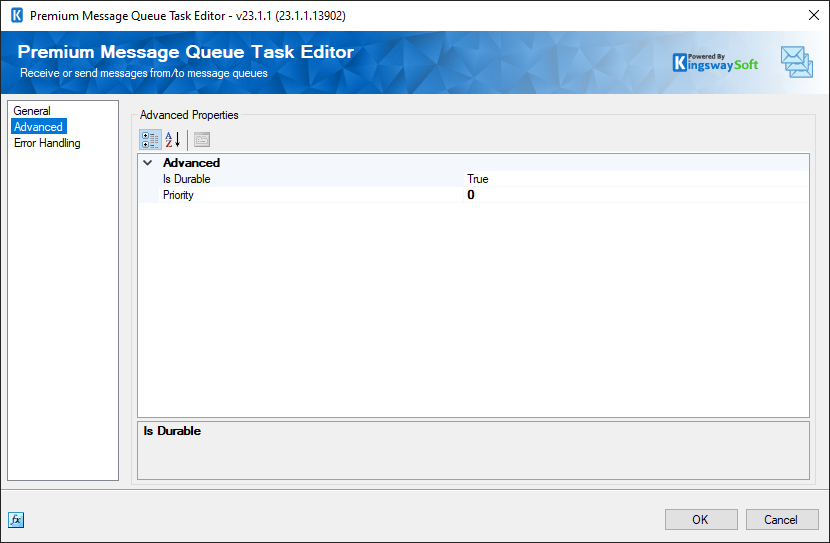

SSIS Premium Message Queue Task - Advanced - ActiveMQ

Advanced
Is Durable

The durable mode can be set to True or False.

  • True: When set to TRUE, the message will be retained persistently.
  • False: When set to FALSE, the message would not be retained persistently.
Priority (Only available under Send Message mode)

The priority of sent messages.

Azure Queue Storage Connection Manager

The "Advanced" page is available for the Send Message mode only.

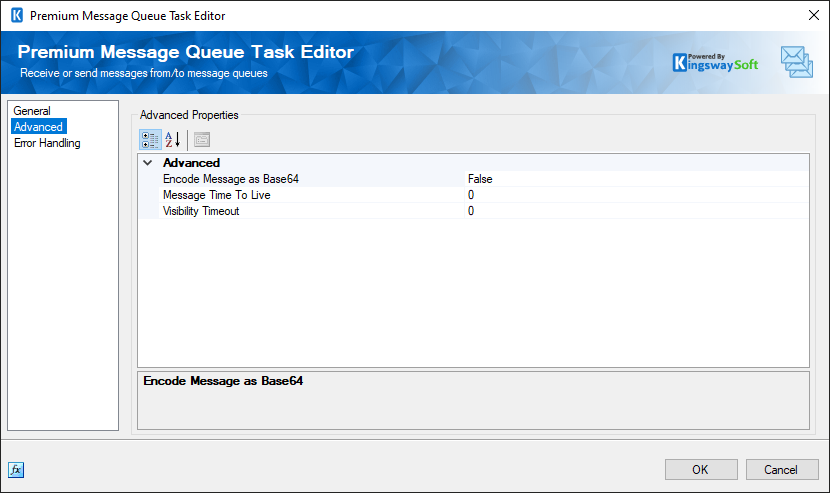

SSIS Premium Message Queue Task - Advanced - Azure Queue Storage

Advanced
Encode Message as Base64
The Decode from Base64 option can be used to decode messages from the Base64 format string.

The Encode Message mode can be set to True or False.

    Message Time To Live
    The time that the message should be retained.
    Visibility Timeout
    The visibility timeout setting specifies the new visibility timeout value, in seconds.
    Azure Service Bus Connection Manager

    The "Advanced" page is available for the Send Message mode only.

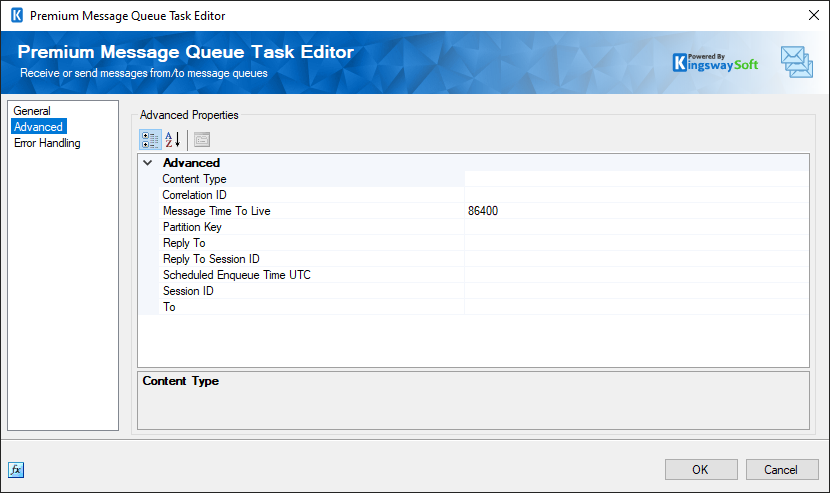

    SSIS Premium Message Queue Task Editor - Advanced - Azure Service Bus

    Advanced
    Content Type
    Enables you to get or set the content type descriptor.
    Correlation ID
    Provides the ability to get or set the correlation identifier.
    Message Time To Live
    Allows you to specify or retrieve the message's "time to live" value.
    Partition Key
    Gives you the capability to set or obtain a partition key for sending a message to a partitioned entity.
    Reply To
    Lets you set or retrieve the address of an entity to which replies should be sent.
    Reply To Session ID
    Facilitates setting or obtaining a session identifier that augments the ReplyTo address.
    Scheduled Enqueue Time UTC
    Permits you to set or retrieve the date and time in UTC at which the message will be enqueued. This property returns the time in UTC; when setting the property, ensure that the supplied DateTime value is also in UTC.
    Session ID
    Provides the ability to set or retrieve the session identifier for a session-aware entity.
    To
    Allows you to set or retrieve the "to" address.
    Kafka Connection Manager

    The "Advanced" page is available for the Send and Receive Message modes.

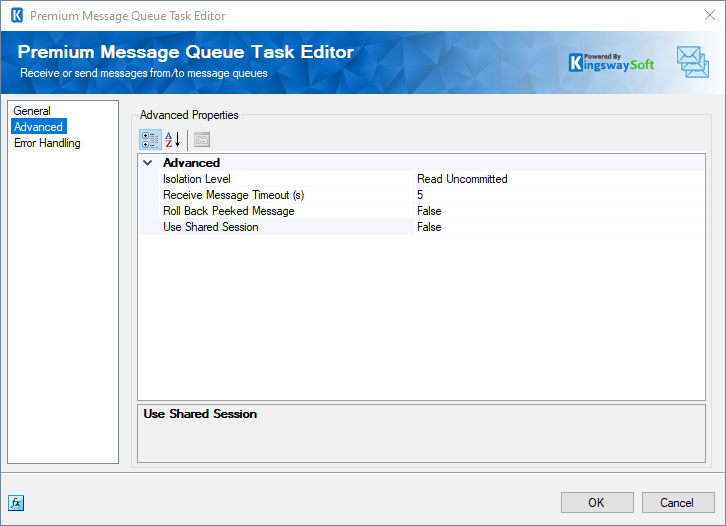

    SSIS Premium Message Queue Task Editor - Advanced - Kafka

    Advanced
    Isolation Level (Only available under Receive Message mode)
    The Isolation Level mode can be set to Read Committed or Read Uncommitted.
    • Read Committed: Use this option to retrieve all records, independently on the transaction outcome (if any).
    • Read Uncommitted: Use this option to get only the records from committed transactions.
    Compression Task (Only available under Send Message mode)
    The Compression Task has the following options available:
    • Default
    • None
    • Gzip
    • Snappy
    • Lz4
    • Zstd
    Receive Message Timeout (Only available under Receive Message mode)
    This options allows you to set the receive message timeout value.
    Roll back Peeked Message  (Only available under Receive Message mode)
    This options allows you to set it as True or False, to whether or not to roll back peeked message.
    Key Type (Only available under Send Message mode)
    This options allows you to set or reuse message keys.
    Partition (Only available under Send Message mode)
    Defines how the messages are partitioned when received.
    MQTT Connection Manager

    The "Advanced" page is available for the Send Message mode only.

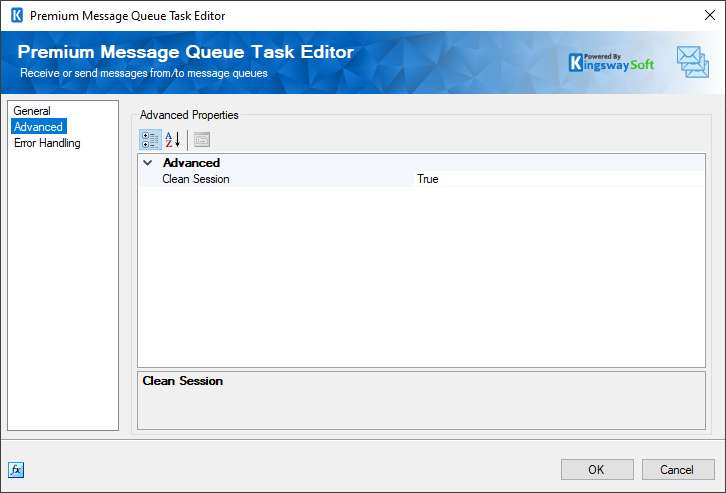

    SSIS Premium Message Queue Task Editor - Advanced - MQTT

    Advanced
    Clean Session
    This option allows you to control the life cycle of the session state. Value of 1 means a brand new session will be created on connection and the session will be automatically destroyed when disconnected. Value of 1 means it will try and reuse the previous session when connecting.
    MSMQ Connection Manager

    The "Advanced" page is available for the Send Message mode only.

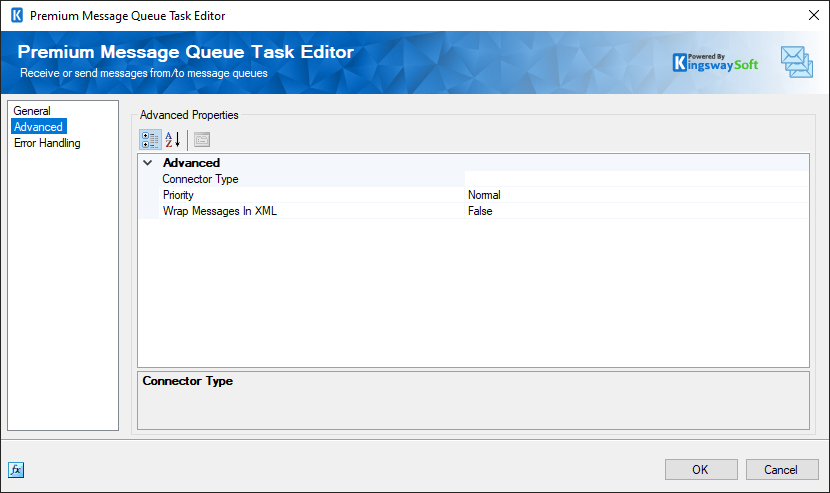

    SSIS Premium Message Queue Task Editor - Advanced - MSMQ

    Advanced
    Connector Type
    This option allows you to specify the Connector Type.
    Priority

    The priority can be set from lowest to highest.

    Wrap Messages in XML

    The wrap messages in xml mode can be set to true or false.

      RabbitMQ Connection Manager

      The "Advanced" page is available for the Send Message mode only.

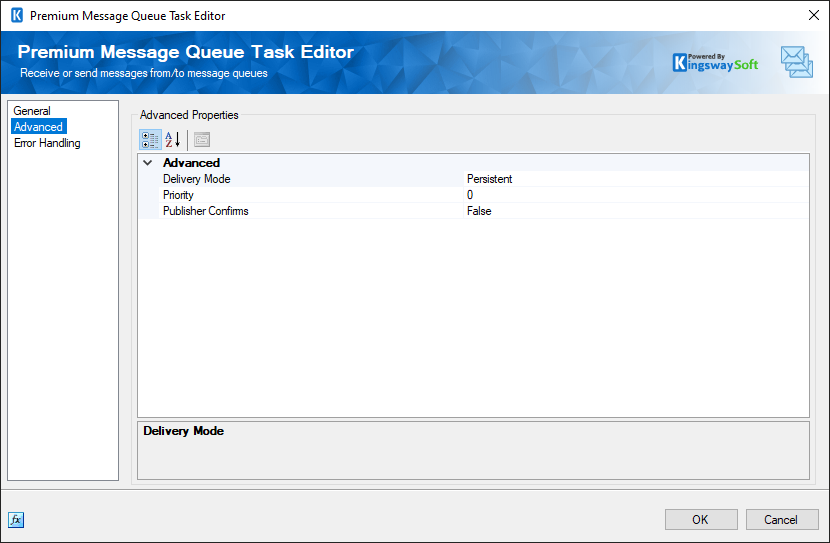

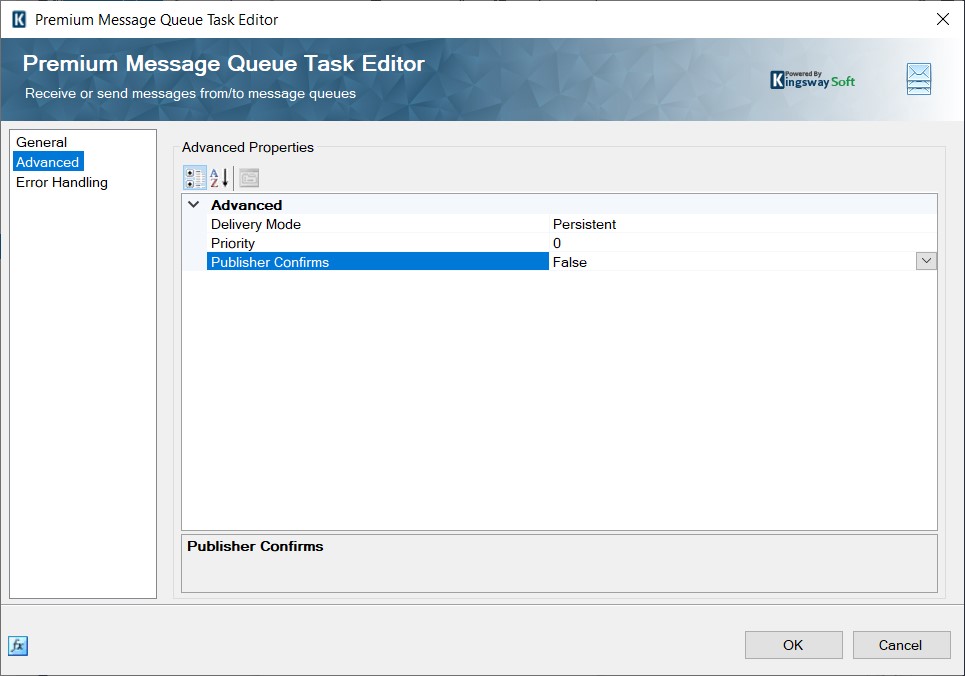

      SSIS Premium Message Queue Task Editor - Advanced - RabbitMQ

      Advanced
      Delivery Mode

      The delivery mode can be set to Persistent or Non-Persistent.

      • Persistent: Messages are stored on disk on the server and will persist after a server restart.
      • Non-Persistent: Messages are only stored in memory.
      Priority
      The priority of sent messages.
      Publisher Confirms
      This could be set to True or False.

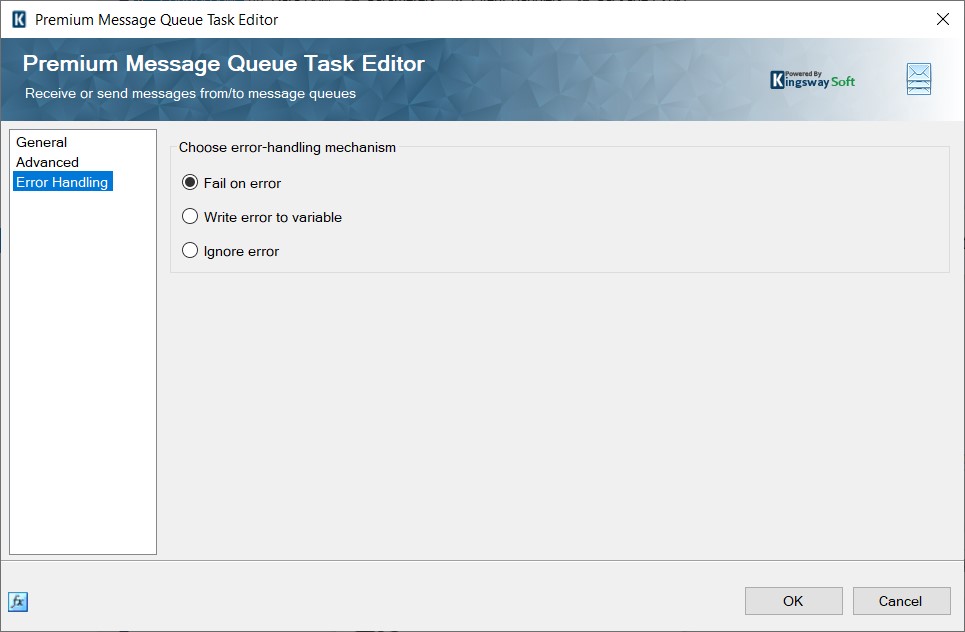

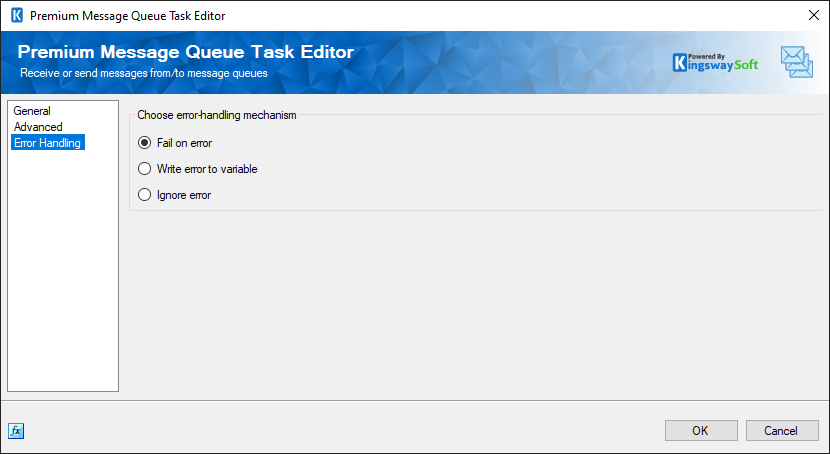

      Error Handling Page

      This page can be used to handle errors.

      SSIS Premium Message Queue Task Component

      You can choose among the three options below:

      • Fail on error
      • Write on error
      • Ignore error
