Help Manual - OpenAI Source

Documentation on SSIS OpenAI Source Component

Using the OpenAI REST Source Component

The REST Source Component is an SSIS source component that can be used to read/retrieve data from OpenAI REST services and produce column data, which then can be consumed by a downstream SSIS pipeline component.

See OpenAI REST Connection Manager for how to connect to OpenAI and OpenAI REST Destination Component for how to write to OpenAI.

The component includes the following two pages to configure how you want to read data:

  • General
  • Columns

General Page

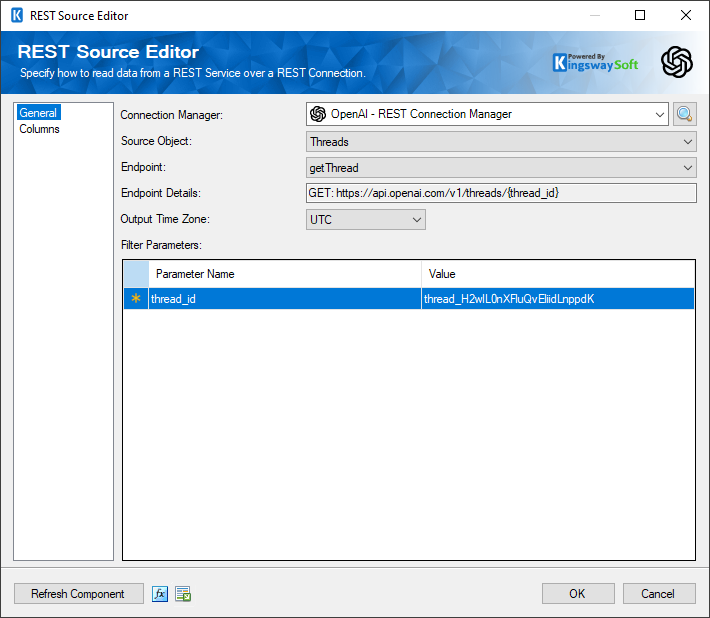

The General page of the REST Source Component allows you to specify the general settings of the component.

OpenAI Source component.png

Connection Manager

The source component requires a REST connection to OpenAI. The Connection Manager drop-down will show a list of all connection managers that are available to your current SSIS package.

Search Object

Click the search button (or press Ctrl + F on your keyboard) to launch the Search Objects & Endpoints dialog. This dialog will open on the side of the source editor and allow you to search for an object or endpoint. Results are ordered by relevance. Clicking on a result will select that object or endpoint in the source editor.

Source Object

The Source Object drop-down lists available objects which you can read from.

Endpoint

The Endpoint drop-down lists all available rest endpoints for the selected object.

Endpoint Details

This is a read-only property that displays the Route and HTTP Method of the currently selected Endpoint.

Batch Size

The Batch Size lets you specify how many records to retrieve per service call to OpenAI.

Note: Some objects do not support batch size, so this option will become disabled.

Output Time Zone

The Output Timezone option lets you specify how all datetime fields should be retrieved. Available options are:

  • UTC
  • Local
Filter Parameters

You can specify Filter Parameters so that the source component only returns those records that satisfy such filter parameters. If a filter parameter has a yellow asterisk beside it, it means the parameter is required and a value must be provided.

Note: Filter fields may vary from object to object depending on endpoints.

Refresh Component Button

Clicking the Refresh Component button causes the component to retrieve the latest metadata and update each field to its most recent metadata.

(Since v24.1) By clicking on the Refresh Component button, a new window will pop up, as shown below, with three options to choose how metadata updates should take place.

REST Source - Refresh Metadata Settings

  • Update all: This would update all the fields regardless of whether there are metadata changes.
  • Update if there are incompatible metadata: This option would refresh any incompatible metadata to the discovered metadata.
  • Update none: No metadata updates would happen to existing fields.
Expression fx Icon

Click the blue fx icon to launch SSIS Expression Editor to enable dynamic updates of the property at run time.

Generate Documentation Icon

Click the Generate Documentation icon to generate a Word document that describes the component's metadata including relevant mapping, and so on.

Columns Page

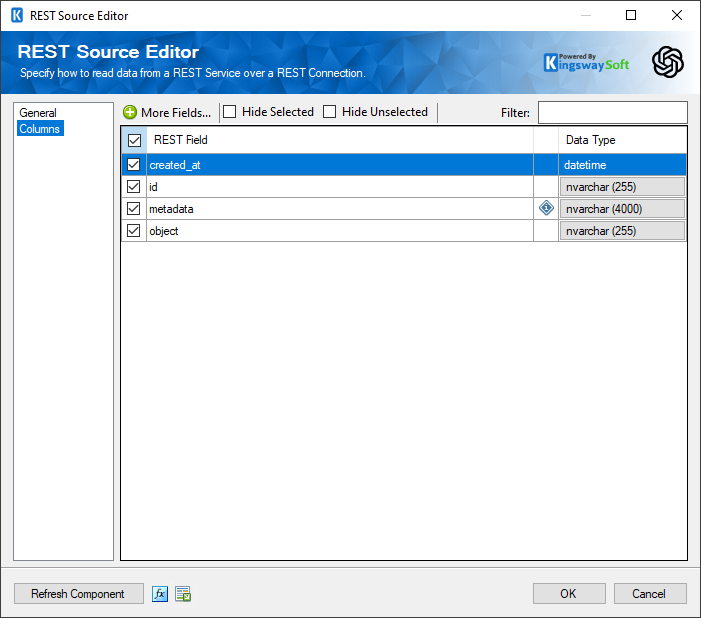

The Columns page of the REST Source Component shows you all available attributes from the endpoint that you specified on the General page. On this page, you can select the output whose columns you wish to configure in the top left drop-down.

OpenAI Source component - Columns.png

On the top left of the grid, you can see a checkbox, which can be used to toggle the selection of all available fields. This is a productive way to check or uncheck all available fields.

More Fields…

This button will open the Manage Additional Fields editor where you will be able to select additional outputs or fields from the returned object from the server.

SSIS REST Source - Additional Fields

  • Expand All: This button will expand the tree view of all the fields under each object.
  • Collapse All: This button will collapse the tree view so only the sub-objects of the returned JSON document are shown.
  • View: This option enables you to view or hide the Details and Summary sections of the Manage Additional Fields editor.
  • Filter: This option allows you to only show checked or unchecked items and it can be used to filter the list of fields using a keyword.
  • Details section: This section displays the information of the selected field/output including the expected performance impact of the selected item if enabled.
  • Summary section: This section displays a summary of what will be added to the component in terms of secondary outputs or fields based on the selected items.
The Columns Page grid consists of:
  • REST Field: Column that will be retrieved from OpenAI REST service.
  • Additional Field Details: An information icon will appear here if the column is special. Hover over the icon to see what makes the column special.
  • Data Type: The data type of this field.

Note: As a general best practice, you should only select the fields that are needed for the downstream pipeline components.
