Help Manual - Google Dataplex Connection Manager

Documentation on SSIS Google Dataplex Connection Manager Component

Setting Up a REST Google Dataplex Connection Manager

The REST Connection Manager is an SSIS connection manager component that can be used to establish connections with Google Dataplex REST service to help facilitate data integration for DataPlex.

See Google Dataplex REST Source Component for how to retrieve data from Google Dataplex and Google Dataplex REST Destination Component for how to write to DataPlex.

To add a new connection, right-click the Connection Manager area in your Visual Studio project, and choose "New Connection..." from the context menu. You will be prompted the "Add SSIS Connection Manager" window. Select the "REST (KingswaySoft)" item to add a new REST Connection Manager.

New SSIS Connection

Add SSIS REST Connection Manager

The REST Connection Manager contains 2 pages for configuration:

  • General
  • Advanced Settings

General Page

The General page allows you to specify connection properties and login credentials for Google Dataplex REST service:

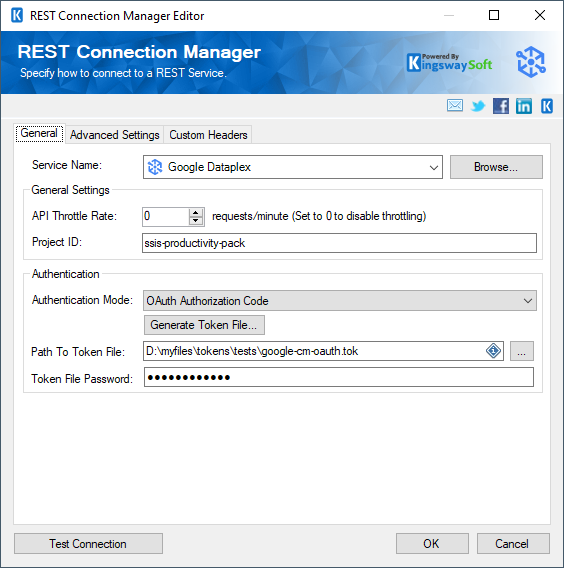

Google Dataplex Rest Connection Manager - General

Service Name

The REST service that will be connected to.

API Throttle Rate

The API Throttling Rate will limit the number of requests that can be sent per minute.

Project ID

The project ID is a unique identifier for a project.

Authentication Mode

The Authentication Mode option allows you to specify the authentication mode when working with Google Dataplex service. Available options are:

  • OAuth Authorization Code
  • Service Account
Generate Token File…

This button allows you to login to the service endpoint and authorize your app to generate a token.

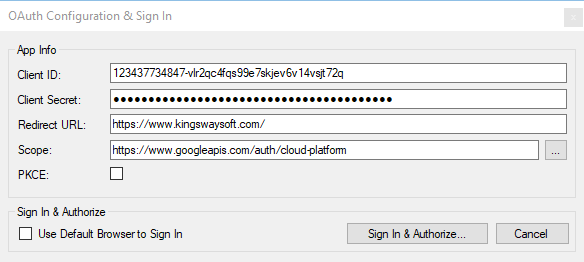

Google Dataplex Rest Connection Manager - OAuth

  • App Info: specify your own application registration with Google Dataplex
    • Client ID
    • Client Secret
    • Redirect URL
    • Scope
    • Use PKCE: Enable this option to use the PKCE OAuth authorization code flow.

Use Default Browser to Sign In

When this option is checked the Generate Token File button will open your default web browser in order to complete the OAuth authentication.

When this option is unchecked, the Generate Token File button will complete the entire OAuth authentication process inside of the toolkit.

Path to Token File

The path to the Google Dataplex API token file on the file system.

Token File Password

The password to the token file.

Authentication Mode Service Account
JSON Key File Path ("Service Account " Authentication mode)

The path to the Google Dataplex API JSON Key file on the file system.

Service Account ("Service Account " Authentication mode)

The Google Dataplex API Service Account.

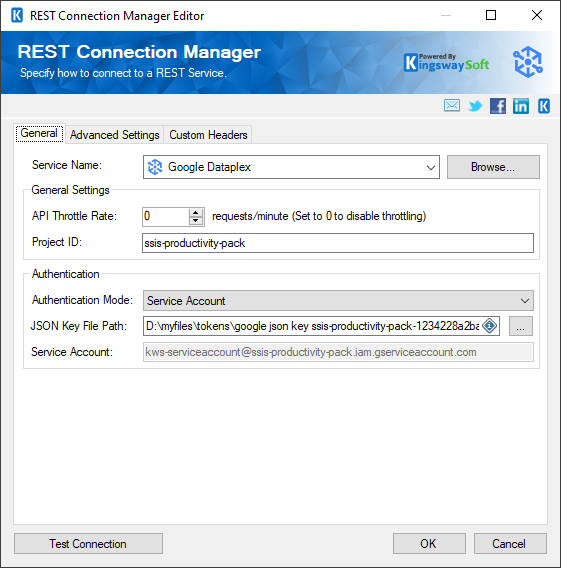

Google Dataplex Rest Connection Manager - Service Account
Test Connection

After all the connection information has been provided, you may click the "Test Connection" button to test if the user credentials entered can connect to the selected REST service.

Advanced Settings page

The Advanced Settings page has some additional options that can be configured.

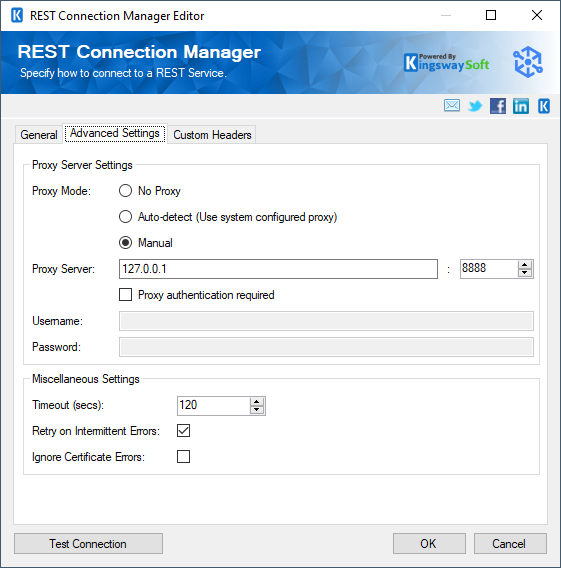

Google Dataplex Rest Connection Manager - Advanced Settings

Proxy Mode

Proxy Mode option allows to specify how you want to configure the proxy server setting. There are three options available.

  • No Proxy
  • Auto-detect (Using system configured proxy)
  • Manual
Proxy Server

Using Proxy Server option allows you to specify the name of the proxy server for the connection.

Port

The Port option allows you to specify the port number of the proxy server for the connection.

Username (Proxy Server Authentication)

Username option (under Proxy Server Authentication) allows you to specify the proxy user account.

Password (Proxy Server Authentication)

Password option (under Proxy Server Authentication) allows you to specify the proxy user's password.

Note: The Proxy Password is not included in the connection manager's ConnectionString property by default. This is by design for security reasons. However, you can include it in your ConnectionString if you want to parameterize your connection manager. The format would be ProxyPassword=myProxyPassword; (make sure you have a semicolon as the last character). It can be anywhere in the ConnectionString.

Timeout

The number of seconds requests should wait before timing out.

Retry on Intermittent Errors

The retry on intermittent errors option determines if requests will be retried when there is an error. If this option is checked requests will be retried up to 3 times.

Ignore Certificate Errors

This option can be used to ignore those SSL certificate errors when connecting to Google Dataplex servers.

Warning: Enabling "Ignore Certificate Errors" option is generally NOT recommended, particularly for production instance. Unless there is a strong reason to believe the connection is secure - such as the network communication is only happening in an internal infrastructure, this option should be unchecked for best security.
