Setting Up a MYOB REST Connection Manager

The REST Connection Manager is an SSIS connection manager that can be used to establish connections and facilitate data integration with REST based APIs and services such as MYOB, among many more.

Integration for MYOB is enabled by the following two components:

To add a new connection, right-click the Connection Manager area in your Visual Studio project, and choose "New Connection..." from the context menu. You will be prompted the "Add SSIS Connection Manager" window. Select the "REST (KingswaySoft)" item to add a new REST Connection Manager.

New SSIS Connection

Add SSIS REST Connection Manager

The REST Connection Manager contains 2 pages of configuration.

  • General
  • Advanced Settings

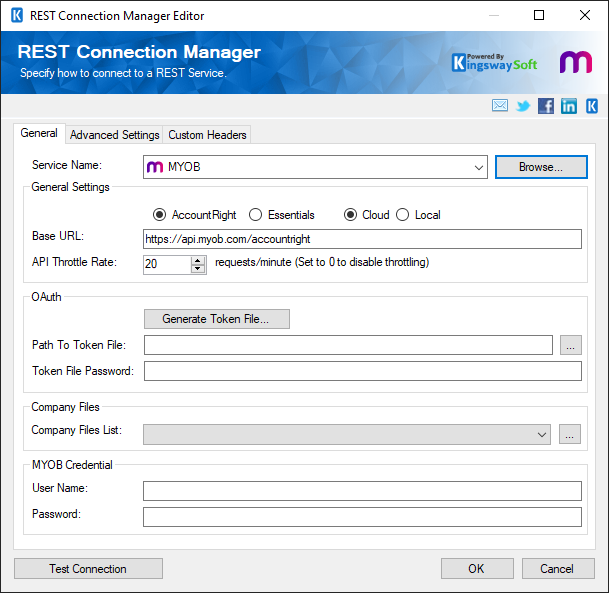

General Page

The General page allows you to specify connection properties and login credentials for MYOB REST service:

SSIS REST MYOB Connection Manager

Service Name

The REST service that will be connected to.

MYOB Server

The type of MYOB’s service that the connection manager will connect to. Available options are:

  • AccountRight:        - Cloud           - Local
  • Essentials:              - AU                - NZ
Base URL

The URL of the MYOB’s REST API that the connection manager will connect to.

API Throttle Rate

The API Throttling Rate will limit the number of requests that can be sent per second.

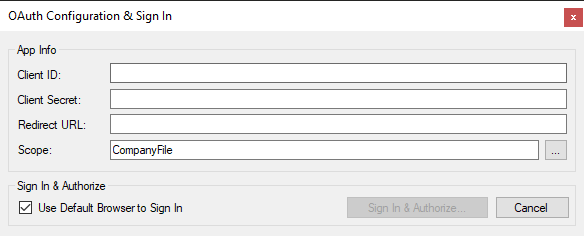

Sign in using the default web browser (Not Available for AccountRight Local MYOB Server):

When this option is checked the Generate Token File button will open your default web browser in order to complete the OAuth authentication.

When this option is unchecked, the Generate Token File button will complete the entire OAuth authentication process inside of the toolkit.

Generate Token File

This button allows you to log in to the service endpoint and authorize your app to generate a token.

Add SSIS REST Connection Manager

Client Id

The Client Id option allows you to specify the unique ID which identifies the application making the request.

Client Secret

The Client Secret option allows you to specify the client secret belonging to your MYOB app.

Redirect Url

The Redirect Url option allows you to specify the Redirect Url to complete the authentication process.

Path To Token File

The path to the token file on the file system.

Token File Password

The password to the token file.

Company Files List (Available for AccountRight only):

This option lists all the available Company Files available in your AccountRight MYOB Server.

Businesses List (Available for Essentials only):

This option lists all the available businesses available in your Essentials MYOB Server.

User Name (Available for AccountRight only):

This option allows you to specify the username which will be used to connect to your MYOB Server.

Password (Available for AccountRight only):

This option allows you to specify the password of the username used to connect to your MYOB Server.

Test Connection

After all the connection information has been provided, you may click the "Test Connection" button to test if the user credentials entered can connect to the selected REST service.

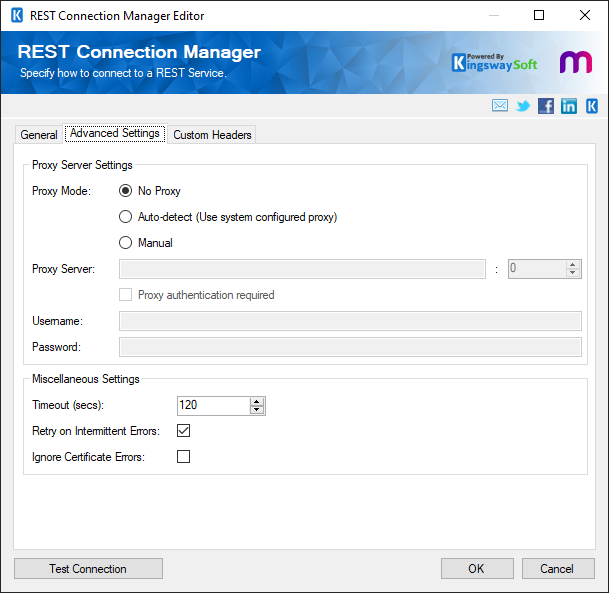

Advanced Settings Page

REST Connection Manager - Advanced

Proxy Mode

The Proxy Mode option allows you to specify how you want to configure the proxy server setting. There are three options available.

  • No Proxy
  • Auto-detect (Using system-configured proxy)
  • Manual
Proxy Server

Using the Proxy Server option allows you to specify the name of the proxy server for the connection.

Port

The Port option allows you to specify the port number of the proxy server for the connection.

Username (Proxy Server Authentication)

The Username option (under Proxy Server Authentication) allows you to specify the proxy user account.

Password (Proxy Server Authentication)

The Password option (under Proxy Server Authentication) allows you to specify the proxy user's password.

Note: The Proxy Password is not included in the connection manager's ConnectionString property by default. This is by design for security reasons. However, you can include it in your ConnectionString if you want to parameterize your connection manager. The format would be ProxyPassword=myProxyPassword; (make sure you have a semicolon as the last character). It can be anywhere in the ConnectionString.

Timeout

The number of seconds a request should wait before timing out.

Retry on Intermittent Errors

The retry on intermittent errors option determines if requests will be retried when there is an error. If this option is checked requests will be retried up to 3 times.

Ignore Certificate Errors

This option can be used to ignore those SSL certificate errors when connecting to MYOB servers.

Warning: Enabling the "Ignore Certificate Errors" option is generally NOT recommended, particularly for production instances. Unless there is a strong reason to believe the connection is secure - such as the network communication is only happening in an internal infrastructure, this option should be unchecked for best security.
