Help Manual - Zendesk Connection Manager

Documentation on SSIS Zendesk Connection Manager component

Setting Up a Zendesk REST Connection Manager

The REST Connection Manager is an SSIS connection manager that can be used to establish connections and facilitate data integration with REST based APIs and services such as Zendesk, among many more.

Integration for Zendesk is enabled by the following two components:

To add a new connection, right-click the Connection Manager area in your Visual Studio project, and choose "New Connection..." from the context menu. You will be prompted the "Add SSIS Connection Manager" window. Select the "REST (KingswaySoft)" item to add a new REST Connection Manager.

New SSIS Connection

Add SSIS REST Connection Manager

The REST Connection Manager contains 2 pages of configuration.

  • General
  • Advanced Settings

General Page

The General page allows you to specify connection properties and login credentials for the Zendesk REST service:

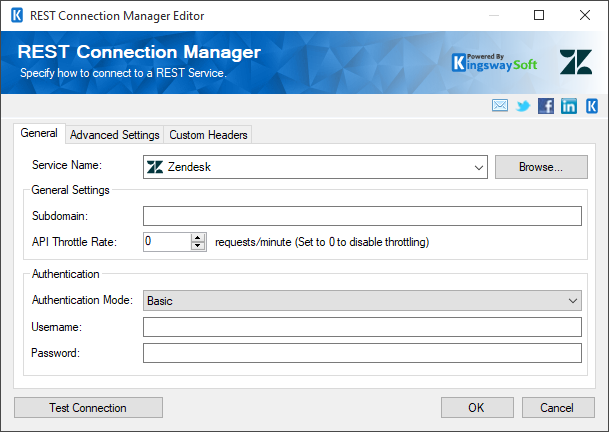

SSIS REST Zendesk Connection Manager

Service Name

The REST service that will be connected to.

Subdomain

The Subdomain option allows you to specify the Zendesk domain that will be connected to.

API Throttle Rate

The API Throttling Rate will limit the number of requests that can be sent per minute.

Authentication Mode

The Authentication Mode option allows you to authentication mode when working with Zendesk service. Available options are:

  • Basic Mode
  • API Token Mode
  • OAuth Mode
Username

The Username to use when accessing Zendesk service. This option is available when Basic Mode or API Token Mode is selected.

Password

The Password to use when accessing Zendesk service. This option is available when Basic Mode is selected.

API Token

The API Token to use when accessing Zendesk service. This option is available when API Token Mode is selected.

Sign in using the default web browser

The Sign in using default web browser checkbox will provide you with the option to complete the entire OAuth authentication process within the toolkit (unchecked) or through your default web browser (checked). This option is used in conjunction with the Generate Token File... button.

Generate Token File...

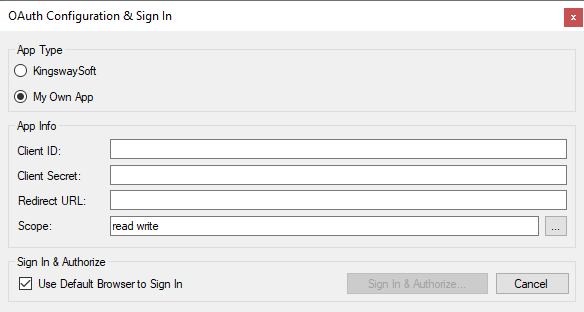

The Generate Token File... button completes the OAuth authentication. After you click this button simply follow the steps in the dialog to generate your token.

Path To Token File

The path to the token file on the file system.

Note: By default, you are using the authorization information (Client Id and Client Secret) provided by KingswaySoft. If you want to use your own OAuth App for OAuth authentication, you can generate the OAuth 2 token file via OAuth 2 Token Generator which allows you to manually specify the authorization information.

Token File Password

The password to the token file.

Test Connection

After all the connection information has been provided, you may click the "Test Connection" button to test if the user credentials entered can connect to the selected REST service.

Advanced Settings Page

REST Connection Manager - Advanced

Proxy Mode

the Proxy Mode option allows you to specify how you want to configure the proxy server setting. There are three options available:

  • No Proxy
  • Auto-detect (Using system-configured proxy)
  • Manual
Proxy Server

Using the Proxy Server option allows you to specify the name of the proxy server for the connection.

Port

The Port option allows you to specify the port number of the proxy server for the connection.

Username (Proxy Server Authentication)

The Username option (under Proxy Server Authentication) allows you to specify the proxy user account.

Password (Proxy Server Authentication)

The Password option (under Proxy Server Authentication) allows you to specify the proxy user's password.

Note: The Proxy Password is not included in the connection manager's ConnectionString property by default. This is by design for security reasons. However, you can include it in your ConnectionString if you want to parameterize your connection manager. The format would be ProxyPassword=myProxyPassword; (make sure you have a semicolon as the last character). It can be anywhere in the ConnectionString.

Timeout

The number of seconds requests should wait before timing out.

Retry on Intermittent Errors

The retry on intermittent errors option determines if requests will be retried when there is an error. If this option is checked requests will be retried up to 3 times.

Ignore Certificate Errors

This option can be used to ignore those SSL certificate errors when connecting to Zendesk servers.

Warning: Enabling the "Ignore Certificate Errors" option is generally NOT recommended, particularly for production instances. Unless there is a strong reason to believe the connection is secure - such as the network communication is only happening in an internal infrastructure, this option should be unchecked for best security.
