Help Manual - Microsoft Planner Connection Manager

Documentation on SSIS Microsoft Planner Connection Manager

Setting Up a Microsoft Planner REST Connection Manager

The REST Connection Manager is an SSIS connection manager component that can be used to establish connections with Microsoft Planner REST service to help facilitate Microsoft Planner data integration.

See Microsoft Planner REST Source Component for how to retrieve data from Microsoft Planner & Microsoft Planner REST Destination Component for how to write to Microsoft Planner.

To add a new connection, right-click the Connection Manager area in your Visual Studio project, and choose "New Connection..." from the context menu. You will be prompted the "Add SSIS Connection Manager" window. Select the "REST (KingswaySoft)" item to add a new REST Connection Manager.

New SSIS Connection

Add SSIS REST Connection Manager

The REST Connection Manager contains 2 pages of configuration.

  • General
  • Advanced Settings

General page

The General page allows you to specify connection properties and login credentials for the Microsoft Planner REST service:

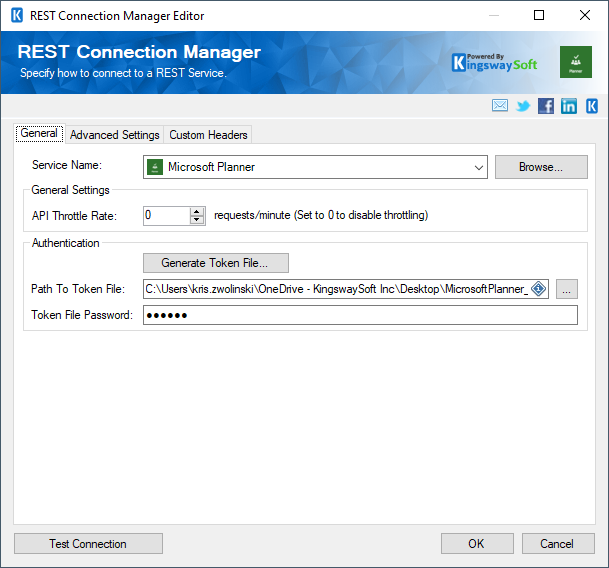

Microsoft Planner Rest Connection Manager.png

Service Name

The REST service that will be connected to.

API Throttle Rate

The API Throttling Rate will limit the number of requests that can be sent per second.

Authentication
Generate Token File

This button opens a dialogue box in order to sign in to your instance to generate a new Token.

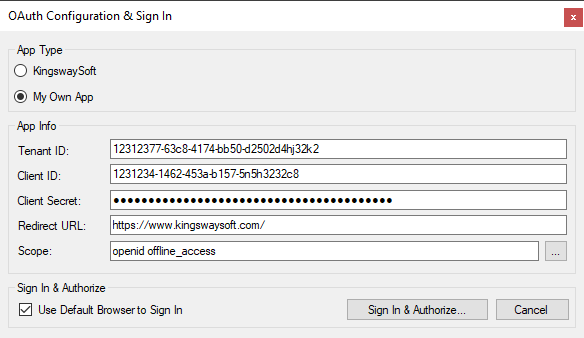

Microsoft Planner Rest Connection Manager - OAuth.png


App Type:  the following two options exist for App Type
  • KingswaySoft: This is for testing purposes only and should never be used in production.  It provides a sample Integration Key, Secret, and Redirect URL.
  • My Own App: This option should be used when you want to connect to your own data.  Selecting this option allows you to enterthe Integration Key and Secret which you get from your OAuth setup at the API side. The Redirect URL is the one that you had specified in the App settings.
Sign In & Authorize
  • Use Default Browser to Sign In: When this option is checked the Sign In and Authorize button will open your default web browser in order to complete the OAuth authentication. When this option is unchecked, the Sign In and Authorize button will complete the entire OAuth authentication process inside the toolkit.
  • Sign In and Authorize: This button allows you to log in to the service endpoint and authorize your app to generate a token.
Path To Token File

This option allows you to enter the path to the token file on the file system. 

Token File Password

The password to the token file.

Test Connection

After all the connection information has been provided, you may click the "Test Connection" button to test if the user credentials entered can connect to the selected REST service.

Advanced Settings page

The Advanced Settings page has some additional options that can be configured.

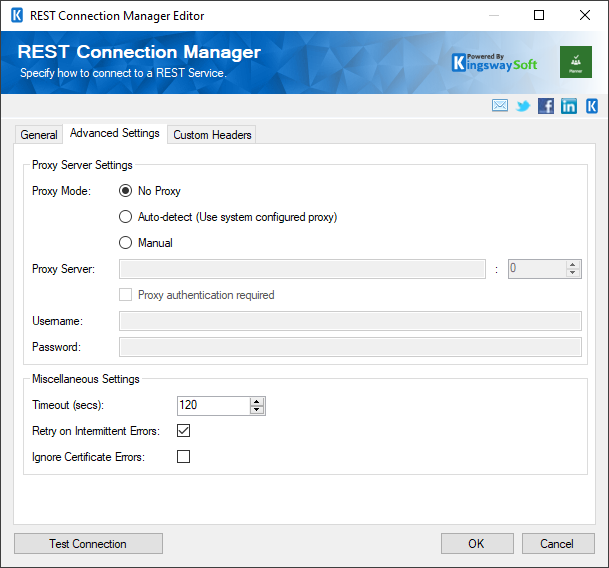

Microsoft Planner Rest Connection Manager - Advanced Settings.png


Proxy Mode

The Proxy Mode option allows you to specify how you want to configure the proxy server setting. There are three options available.

  • No Proxy
  • Auto-detect (Using system-configured proxy)
  • Manual

Proxy Server

Using the Proxy Server option allows you to specify the name of the proxy server for the connection.


Port

The Port option allows you to specify the port number of the proxy server for the connection.


Username (Proxy Server Authentication)

The Username option (under Proxy Server Authentication) allows you to specify the proxy user account.


Password (Proxy Server Authentication)

The Password option (under Proxy Server Authentication) allows you to specify the proxy user's password.

Note: The Proxy Password is not included in the connection manager's ConnectionString property by default. This is by design for security reasons. However, you can include it in your ConnectionString if you want to parameterize your connection manager. The format would be ProxyPassword=myProxyPassword; (make sure you have a semicolon as the last character). It can be anywhere in the ConnectionString.


Timeout

The number of seconds requests should wait before timing out.


Retry on Intermittent Errors

The retry on intermittent errors option determines if requests will be retried when there is an error. If this option is checked requests will be retried up to 3 times.


Ignore Certificate Errors

This option can be used to ignore those SSL certificate errors when connecting to Microsoft Planner servers.

Warning: Enabling the "Ignore Certificate Errors" option is generally NOT recommended, particularly for production instances. Unless there is a strong reason to believe the connection is secure - such as the network communication is only happening in an internal infrastructure, this option should be unchecked for best security.
