Setting Up a Replicon REST Connection Manager

The REST Connection Manager is an SSIS connection manager that can be used to establish connections and facilitate data integration with REST-based APIs and services, such as Replicon, among many others.

Integration for Replicon is enabled by two components: the source  component, which retrieves data from Replicon, and the destination  component, which writes to your Replicon environment:

To add a new connection, right-click the Connection Manager area in your Visual Studio project, and choose "New Connection..." from the context menu. You will be prompted to the "Add SSIS Connection Manager"  window. Select the "REST (KingswaySoft)" item to add a new REST  Connection Manager.

New SSIS Connection

Add SSIS REST Connection Manager

The REST Connection Manager contains 2 pages of configuration:

  • General
  • Advanced Settings

General Page

The General page allows you to specify connection properties and login credentials for the Replicon REST service:

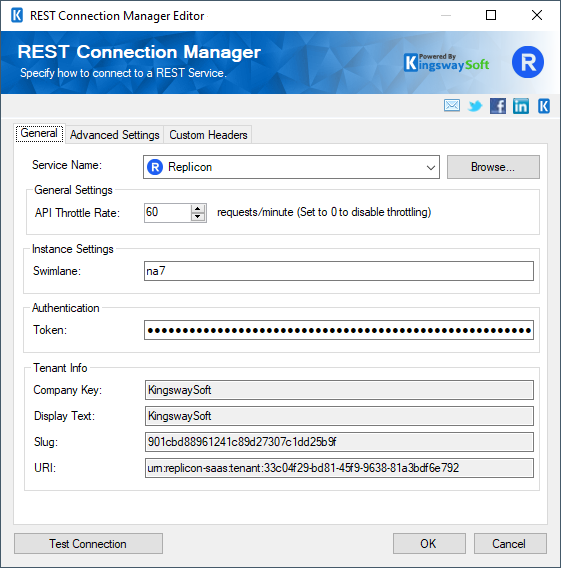

Replicon Connection Manager.png

Service Name

The REST service that will be connected to.

Authentication Token

This option allows you to enter your token which is going to be used to connect to your Replicon instance.

Swimlane

Your Swimlane, or endpoint, is the environment where your instance is hosted and is a three-character value preceding .replicon.com. The Swimlane for this example endpoint: https://na7.replicon.com/ would be na7.

API Throttling Rate

The API Throttling Rate will limit the number of requests that can be sent per minute. Also, note that setting to 0 will disable the throttling limit.

Tenant Info

Once the token and Swimlane are set, you will receive additional read-only fields. This will include your Company Name, Display Text, Slug unique identifier, and URI to identify the specific resource.

Test Connection

After all the connection information has been provided, you may click the "Test Connection" button to test if the user credentials entered can connect to the selected REST service.

Advanced Settings Page

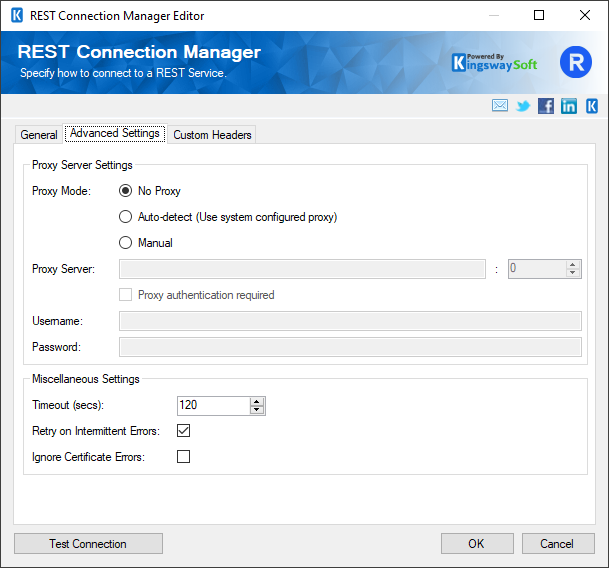

Replicon Connection Manager - Advanced Settings.png

Proxy Mode

The Proxy Mode option allows you to specify how you want to configure the proxy server setting. There are three options available:

  • No Proxy
  • Auto-detect (Using system-configured proxy)
  • Manual
Proxy Server

Using the Proxy Server option allows you to specify the name of the proxy server for the connection.

Port

The Port option allows you to specify the port number of the proxy server for the connection.

Username (Proxy Server Authentication)

The Username option (under Proxy Server Authentication) allows you to specify the proxy user account.

Password (Proxy Server Authentication)

The Password option (under Proxy Server Authentication) allows you to specify the proxy user's password.

Note: The Proxy Password is not included in the connection manager's ConnectionString property by default. This is by design for security reasons. However, you can include it in your ConnectionString if you want to parameterize your connection manager. The format would be ProxyPassword=myProxyPassword; (make sure you have a semicolon as the last character). It can be anywhere in the ConnectionString.

Timeout

The number of seconds requests should wait before timing out.

Retry on Intermittent Errors

The retry on intermittent errors option determines if requests will be retried when there is an error. If this option is checked requests will be retried up to 3 times.

Ignore Certificate Errors

This option can be used to ignore those SSL certificate errors when connecting to Replicon servers.

Warning: Enabling the "Ignore Certificate Errors" option is generally NOT recommended, particularly for production instances. Unless there is a strong reason to believe the connection is secure - such as the network communication is only happening in an internal infrastructure, this option should be unchecked for best security.
