Setting Up an Azure Application Insights REST Connection Manager
The REST Connection Manager is an SSIS connection manager that can be used to establish connections and facilitate data integration with REST based APIs and services such as Azure Application Insights, among many more.
See Azure Application Insights REST Source Component for how to retrieve data from Azure Application Insights.

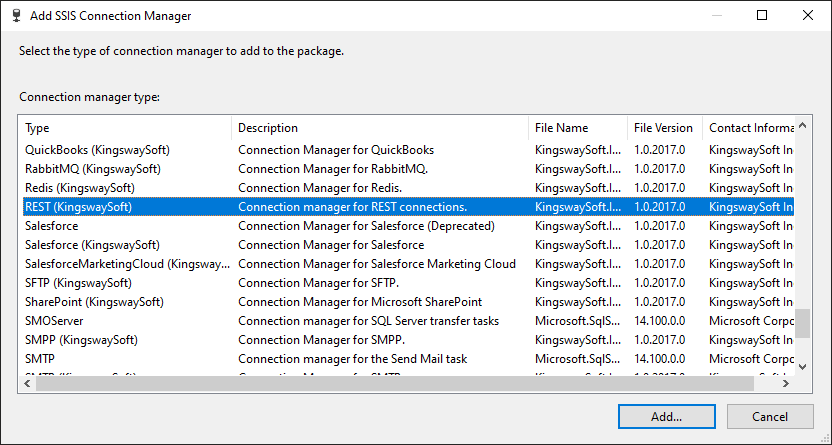

To add a new connection, right-click the Connection Manager area in your Visual Studio project, and choose "New Connection..." from the context menu. You will be prompted the "Add SSIS Connection Manager" window. Select the "REST (KingswaySoft)" item to add a new REST Connection Manager.
The REST Connection Manager contains 2 pages of configuration.
- General
- Advanced Settings
General Page
The General page allows you to specify connection properties and login credentials for Azure Application Insights REST service:
- Service Name
-
The REST service that will be connected to.
- Application ID
-
The full Application ID of the Azure Application Insights instance that will be connected to.
- API Throttle Rate
-
The API Throttling Rate will limit the number of requests that can be sent per minute.
- Region
-
This option allows you to specify the region to which your Azure Application Insights instance belongs.
- Authentication Mode
-
The Authentication Mode option allows you to specify the authentication mode when working with Azure Application Insights service. Available options are:
- API Key
- OAuth
- API Key (API Key Authentication Mode)
-
This option allows you to enter your own API token which is going to be used to connect to your Azure Application Insights instance.
- Generate Token File (OAuth Authentication Mode)
-
This button opens a dialogue box in order to sign in to your instance to generate a new Token. In the dialogue box, the following two options exist:
- Use Default Browser to Sign In: When this option is checked the Sign In and Authorize button will open your default web browser in order to complete the OAuth authentication. When this option is unchecked, the Sign In and Authorize button will complete the entire OAuth authentication process inside of the toolkit.
- Sign In and Authorize: This button allows you to log in to the service endpoint and authorize your app to generate a token.
- Path To Token File (OAuth Authentication Mode)
-
This option allows you to enter the path to the token file on the file system.
- Token File Password (OAuth Authentication Mode)
-
The password to the token file.
- Test Connection
-
After all the connection information has been provided, you may click the "Test Connection" button to test if the user credentials entered can connect to the selected REST service.

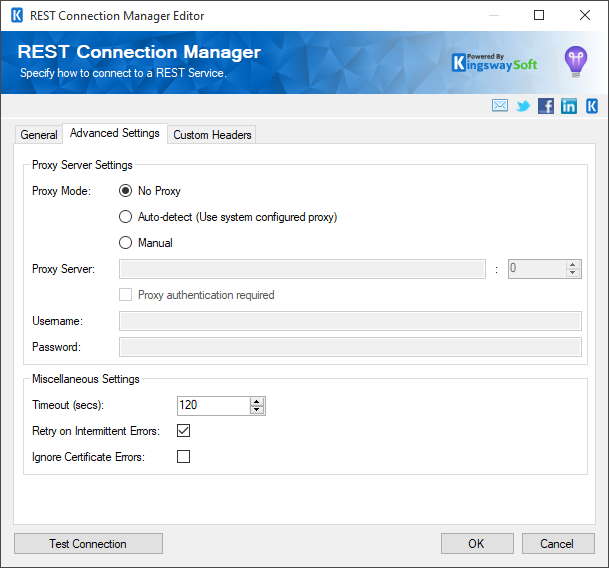

Advanced Settings Page
- Proxy Mode
-
The Proxy Mode option allows you to specify how you want to configure the proxy server setting. There are three options available:
-
- No Proxy
- Auto-detect (Using system-configured proxy)
- Manual
- Proxy Server
-
Using the Proxy Server option allows you to specify the name of the proxy server for the connection.
- Port
-
The Port option allows you to specify the port number of the proxy server for the connection.
- Username (Proxy Server Authentication)
-
The Username option (under Proxy Server Authentication) allows you to specify the proxy user account.
- Password (Proxy Server Authentication)
-
The Password option (under Proxy Server Authentication) allows you to specify the proxy user's password.
Note: The Proxy Password is not included in the connection manager's ConnectionString property by default. This is by design for security reasons. However, you can include it in your ConnectionString if you want to parameterize your connection manager. The format would be ProxyPassword=myProxyPassword; (make sure you have a semicolon as the last character). It can be anywhere in the ConnectionString.
- Timeout
-
The number of seconds requests should wait before timing out.
- Retry on Intermittent Errors
-
The retry on intermittent errors option determines if requests will be retried when there is an error. If this option is checked requests will be retried up to 3 times.
- Ignore Certificate Errors
-
This option can be used to ignore those SSL certificate errors when connecting to Slack servers.
Warning: Enabling the "Ignore Certificate Errors" option is generally NOT recommended, particularly for production instances. Unless there is a strong reason to believe the connection is secure - such as the network communication is only happening in an internal infrastructure, this option should be unchecked for best security.
